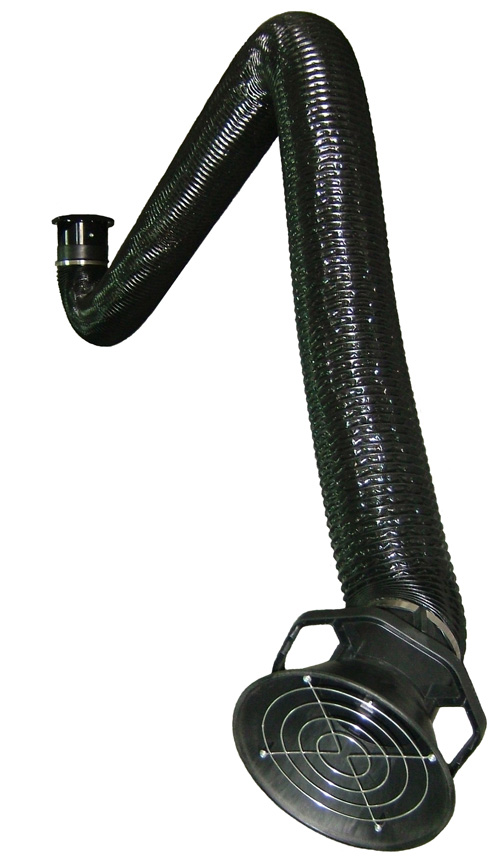

DEA classic type of suction arm - Flange Lifting
DEA classic type of suction arm - Flange LiftingBrand
Applied range
◆ The occasion for collecting dust pollution
◆ Collect welding dust pollution occasions
◆ Capture volatile organic solvent gas pollution occasions
◆ The occasion for partial removal of hot air
◆ The occasion for partial air supply
Installation type
◆ Lift upward flange which doubles as load bearing and ventilation connection.
Product superiority
◆ Equipped with adjustable anti-drift damping device to offset the pendulum effect caused by the uneven mounting surface, convenient installation and reliable hover.
◆ The outer pipe adopts high quality hose reinforced by steel wire, with good folding resistance and long service life.
◆ The built-in support and reasonable structure design enable the suction arm to operate freely in the whole working area and hover reliably at any position.
◆ The suction head is equipped with ratchet wheel to locate the air valve. The ring handle can control the suction hood direction in any position.
Specification
| Product Type |
Net Weight (kg) |
Extended Length (m) |
Hose Diameter (mm) |
Cone Diameter (mm) |
Recommended Ventilation Rate (m3/h) |
Pressure Loss (pa) |
| DEA-2-F | 11.9 | 2.0 | 160 | 300 | 800–1200 | 300-600 |
| DEA-3-F | 13.2 | 3.0 | 160 | 300 | 800–1200 | 300-600 |
| DEA-4-F | 15.4 | 4.0 | 160 | 300 | 800–1200 | 300-600 |
