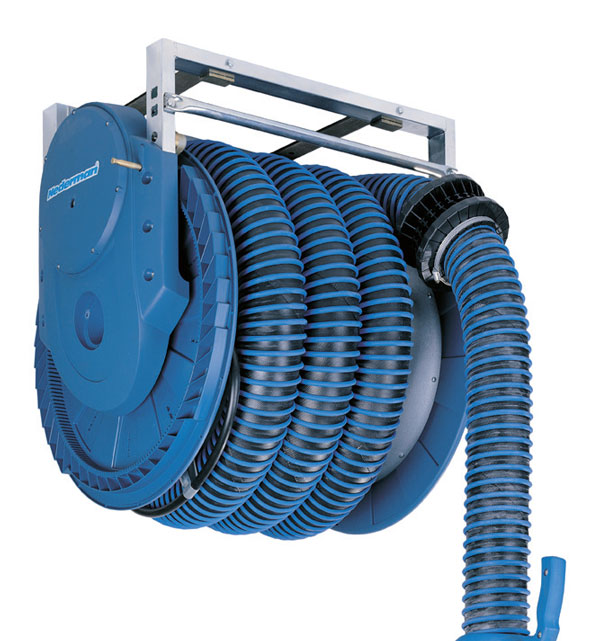

865 Spring rewinding type coil tube

Applied range
Applicable to the internal combustion engine and automobile manufacturing industry, automobile maintenance industry and automobile testing station, as well as the automobile production, maintenance and testing process of exhaust emissions collection and treatment.

Product description
1. The spring reel uses the coiling spring force to make the hose rewind after being pulled out. The built-in positioning ratchet wheel can make the hose stay in a certain position after being pulled for a certain length. When the hose stops being used, it can be rewound back to the reel by pulling the hose.
2. Exhaust hoses with different diameters, lengths and temperature resistance can be used according to the use requirements.
3. During installation, the hose should be positioned at a height that is easy to pull, so that it can be easily used.
4. Maximum weight: 19 kg.

Specification

Product model	Diameter (mm)	Maximum duct length (m)	Weight (kg)
865-75	75	7.5	49
865-100	100	10	49
865-125	125	10	54
865-150	150	10	54
